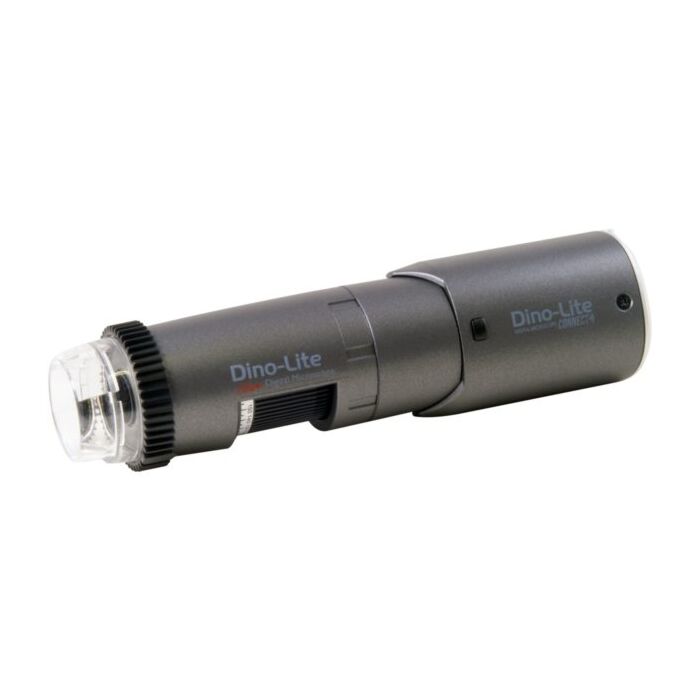

Dino-Lite Microscoop WF4515ZTL, LWD, AMR, Wireless, Edge, met USB en WIFI
De Dino-Lite WF4515ZTL is een Wireless model uit de Long Working Distance (LWD) serie. Schakel in een handomdraai van draadloos naar bedraad en weer terug. Werk bedraad met USB of werk draadloos met de optionele WF-20 Wireless adapter.
De WF4515ZTL is voorzien van hoogwaardige functies waaronder Flexible LED control (FLC), een geïntegreerde polarisator, uitgebreide meetmogelijkheden en Automatic Magnification Reading (AMR) voor meet-intensieve toepassingen.
De belangrijkste kenmerken van de WF4515ZTL zijn:
• Volledig draadloze toepassing (inclusief WF-20)
• 1.3 Megapixel Edge sensor
• 10-140x vergroting
• Long Working Distance (LWD)
• Automatic Magnification Reading (AMR)
• Verstelbare polarisator
• Flexible LED Control (FLC)
Dino-Lite range: Dino-Lite Long Working Distance - Wireless
Lighting
Light/ LED type: White
Number of LEDs: 8
LED on/off switchable: Yes
Infrared filter: IR cut-filter >650 nm
Diffuser available: Yes (N3C-D included)
Emission filter: No
Polarizer: Yes, linear
Optics
Magnification: 10-140x
Macro zoom: No
Working distance: Long
Lens type: Glass with anti-reflection coating
Sensor
Sensor type: CMOS
Resolution: 1.3 Megapixel (1280x1024)
Maximum frame rate: 30 fps
Compatibility
Interface: USB 2.0
Operating system: Windows 7, 8 & 10, MacOS 10.12 and up
Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS, no EDOF, EDR)
WiFi: Completely Wireless solution (includes WF-20)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: DirectShow, UVC
Housing
Housing material: Composite/ plastic housing
Magnification lock: Yes
Dimensions: 11.4cm (L) x 3.3cm (D)
Weight: 111g
Cable length: 1.8m
Features
Special feature: Aut. Magn. reading, Flexible LED Control (FLC)
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
ESD safe: No
Information
Package contents: Microscope, WF-20, Carry pouch, Software CD, Calibration target, User manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-Extension cap, N3C-L- Long cap, N3C-S- Side light cap
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
Productomschrijving
De Dino-Lite WF4515ZTL is een Wireless model uit de Long Working Distance (LWD) serie. Schakel in een handomdraai van draadloos naar bedraad en weer terug. Werk bedraad met USB of werk draadloos met de optionele WF-20 Wireless adapter.
De WF4515ZTL is voorzien van hoogwaardige functies waaronder Flexible LED control (FLC), een geïntegreerde polarisator, uitgebreide meetmogelijkheden en Automatic Magnification Reading (AMR) voor meet-intensieve toepassingen.
De belangrijkste kenmerken van de WF4515ZTL zijn:
• Volledig draadloze toepassing (inclusief WF-20)
• 1.3 Megapixel Edge sensor
• 10-140x vergroting
• Long Working Distance (LWD)
• Automatic Magnification Reading (AMR)
• Verstelbare polarisator
• Flexible LED Control (FLC)
Dino-Lite range: Dino-Lite Long Working Distance - Wireless
Lighting
Light/ LED type: White
Number of LEDs: 8
LED on/off switchable: Yes
Infrared filter: IR cut-filter >650 nm
Diffuser available: Yes (N3C-D included)
Emission filter: No
Polarizer: Yes, linear
Optics
Magnification: 10-140x
Macro zoom: No
Working distance: Long
Lens type: Glass with anti-reflection coating
Sensor
Sensor type: CMOS
Resolution: 1.3 Megapixel (1280x1024)
Maximum frame rate: 30 fps
Compatibility
Interface: USB 2.0
Operating system: Windows 7, 8 & 10, MacOS 10.12 and up
Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS, no EDOF, EDR)
WiFi: Completely Wireless solution (includes WF-20)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: DirectShow, UVC
Housing
Housing material: Composite/ plastic housing
Magnification lock: Yes
Dimensions: 11.4cm (L) x 3.3cm (D)
Weight: 111g
Cable length: 1.8m
Features
Special feature: Aut. Magn. reading, Flexible LED Control (FLC)
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
ESD safe: No
Information
Package contents: Microscope, WF-20, Carry pouch, Software CD, Calibration target, User manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-Extension cap, N3C-L- Long cap, N3C-S- Side light cap
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
