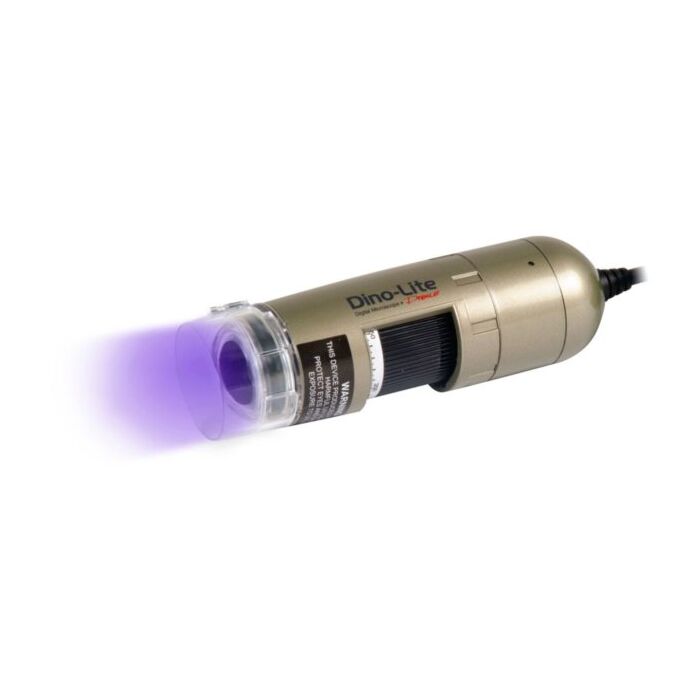

Digitale PC-Microscoop Dino-Lite Speciaal licht AD4113-I2V Infrarood (~940nm) als UV (~395nm) LED-verlichting
De AD4113T-I2V biedt zowel Infrarood (~940nm) als UV (~395nm) LED-verlichting in één toestel.
Deze verschillende verlichtingsopties bieden de mogelijkheid om objecten vergroot weer te geven onder (extern) wit licht, of onder het ingebouwde IR of UV licht. De infrarood optie kan o.a. gebruikt worden bij de controle van documenten en de nieuwe, verbeterde UV verlichting biedt een goede basis voor het gebruik in forensische, biologische of machine vision applicaties.
- 1.3 Megapixel resolutie
- Schakelbare UV/IR LEDs
- 10x - 50x, 220x Vergroting
- Met verwisselbare kappen
Dino-Lite Special light
Lighting
Light/ LED type: ~395 nm UV + ~940 nm Infrared
Number of LEDs: 4+4
LED on/off switchable: Yes
Infrared filter: No
Diffuser available: No
Emission filter: No
Polarizer: No
Optics Magnification: 10x - 50x, 220x
Macro zoom: No
Working distance: Standard
Lens type: Glass with anti-reflection coating
Sensor
Sensor type: CMOS
Resolution: 1.3 Megapixel (1280x1024)
Maximum frame rate: 30 fps
Compatibility Interface: USB 2.0
Operating system: Windows XP, Vista, 7, 8 & 10, MacOS 10.9 and up
Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
WiFi: Wireless-ready, requires the WF-20 adapter (optional)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Imaging standards: DirectShow, UVC
Housing
Housing material: Composite/ plastic housing
Magnification lock: Yes
Dimensions: 10.5cm (L) x 3.2cm (D)
Weight: 105g
Cable length: 1.8m
Features
Special feature: No
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
ESD safe: No
Information
Package contents: Microscope, Carry pouch, Software CD, Open and closed cap, Calibration target, User manual
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
